Hey, here are few of the things I made…

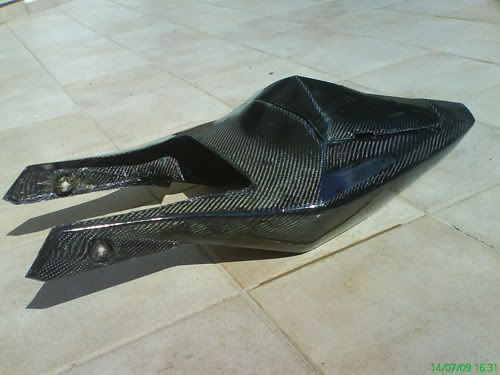

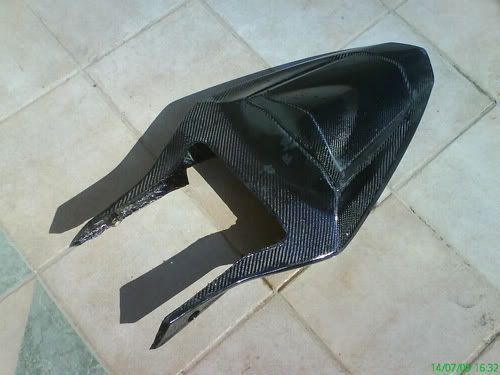

A full carbon Gsxr Tail while buffing (only carbon vaccum bagged & epoxy as per owners wishes)

weight of the OEM around 1.5 -2 kg
weight of the carbon 350grams :eek:

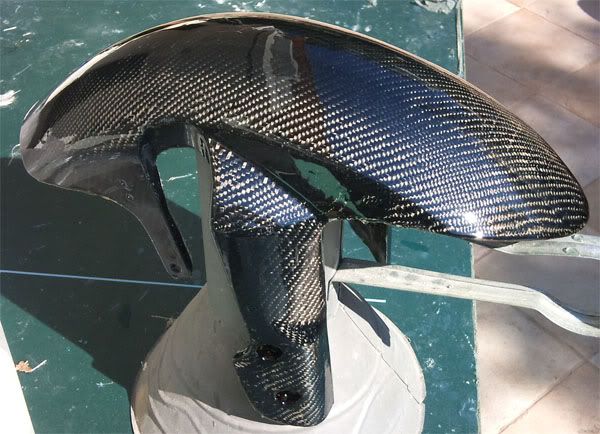

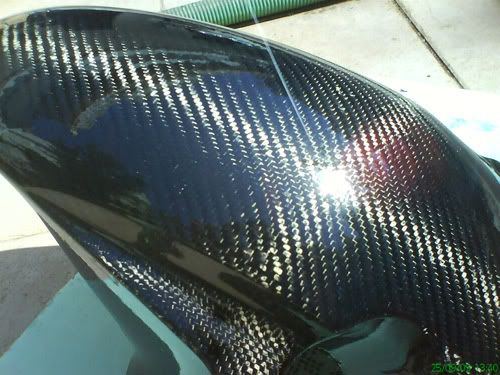

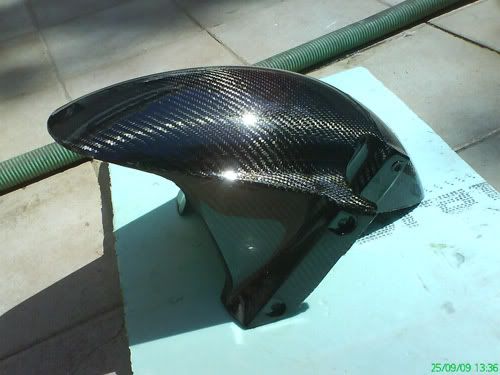

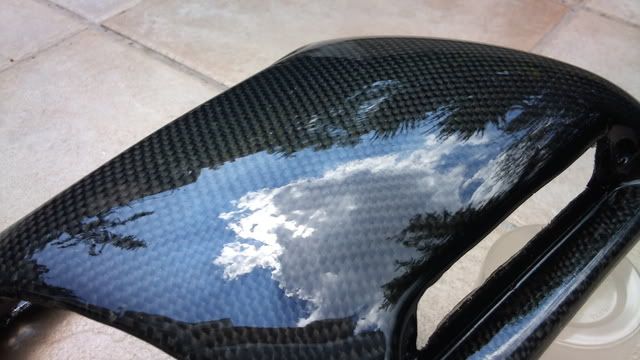

and a front fender for my bike (carbon and epoxy vaccumed)

#2

Not bad at all :wink:

#3

Did you make a multi piece mold for the tailpiece

#4

Yeap, it would have been imposible to demold it otherwise.

#5

Few more…

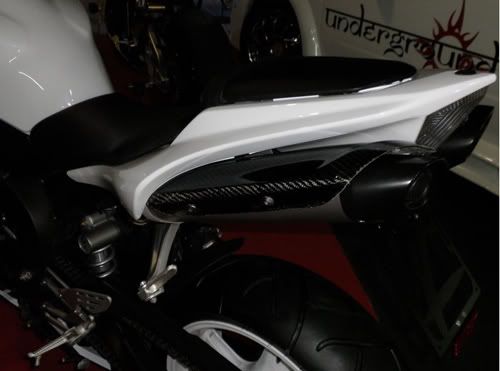

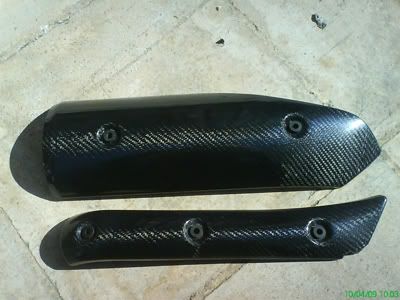

R1 Exhaust Guards

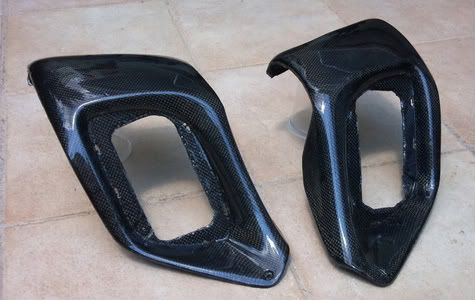

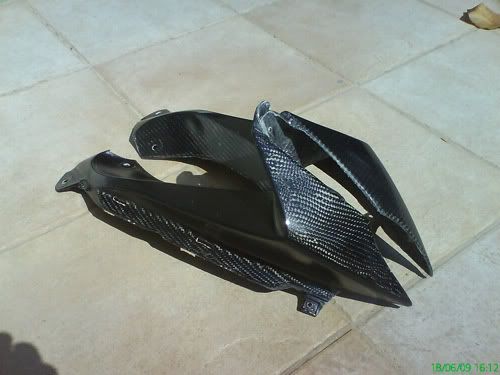

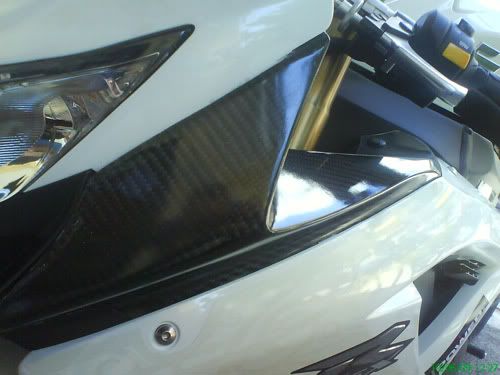

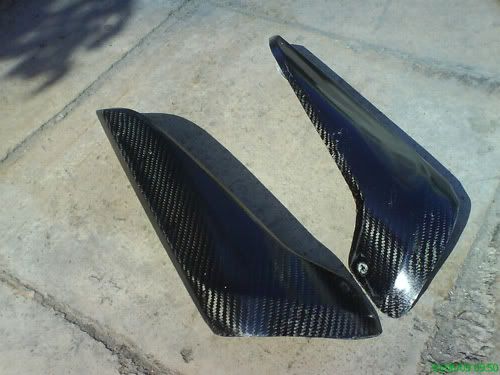

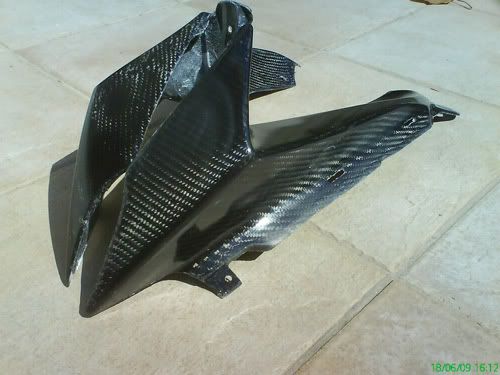

Gsxr K9 Ram-Air intake sides

V-Strom 650DL Exhaust Covers

#6

Looks good. Some tricky shapes in there.

#7

Darn nice job on that tail and front CBR600 fender!

I just threw away a F4i front fender mold last week to make some room here to work. Threw away a couple other molds too that were not perfect anyhow accept two of them no one would buy.

My F4i fender mold sucked anyhow. too many flaws in it.

Nice work.:slight_smile:

#8

damn i can never get a non porous surface like that when vacuum bagging… great work man!

#9

How many hours did it take to make those gsxr ram air intake panels for the pair? Looks tricky to say the least.

#10

Thanks guys,
FastRR I would say approximately 6 hours in total cause it’s a 3d shape

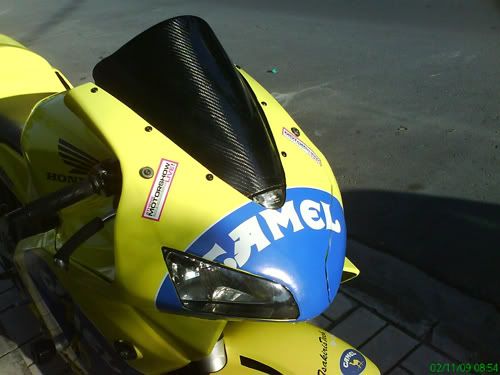

Windscreen Double Bubble

Z50 Monkey accessories

#11

did you do any other parts of the bike? I have an 03 gsxr1000 and want to replace the fairings but don’t have time to do it myself.

#12

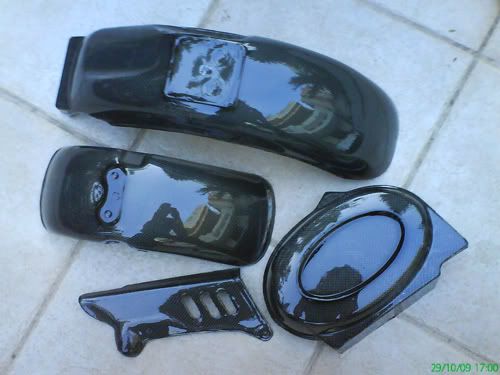

Actually I made the tail, the front fender and the chain guard

#13

beauty! did you have to trim the parts or were the edges rolled?

#14

I try to make my molds with the edges rolled, althought it’s a b*tch and asking for bridging trouble

#15

would you be able to post a pic of a rolled edge that you speak of? I can’t picture the mold…

#16

Few more parts I made during the past weeks. At the moment it’s too hot to make anything…

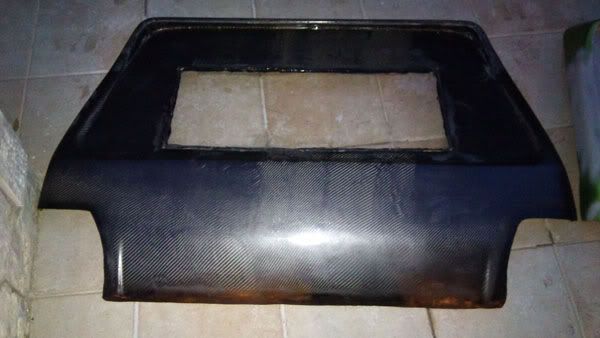

For a DragRace car of a friend (parts out of the mold while sanding- ~-70% weight reduction)

#17

Nice fender, what’s the mold look like?

#18

What does the mold for the 3D air tubes look like?

#19

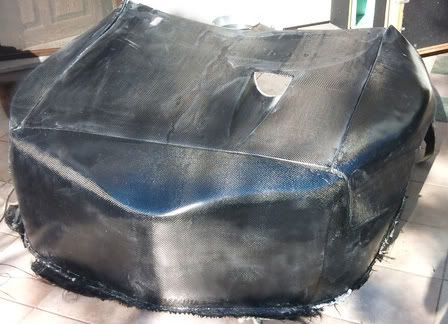

It’s a one piece mold, if I had to make it again I would make it two pieces mold, cause it was a pain’’’ to demold the part without breaking it.

#20

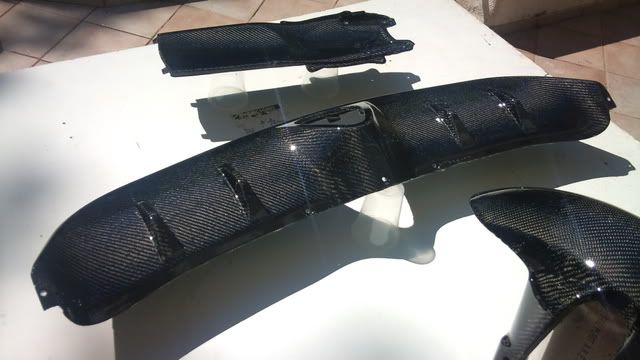

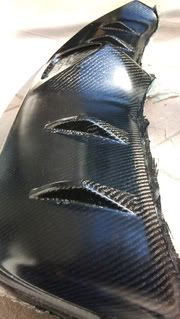

Carbon Diffuser

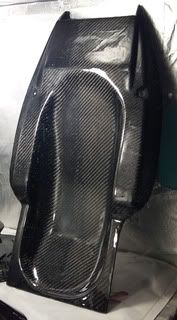

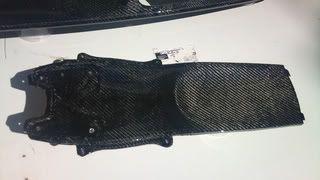

Gsxr Undertail

VFR Undertail
